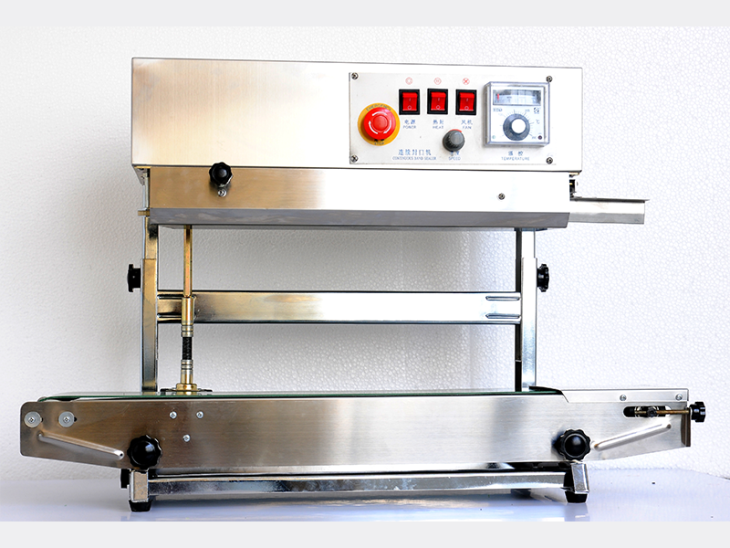

Multifunctional film sealing machine is suitable for the sealing and
packaging of plastic bags. It adopts electronic temperature control and
stepless speed regulation transmission. It can seal plastic films of
various materials (PE, PP, aluminum film, etc.), and can also be
equipped with indentation. Printing device.
The machine is composed of a frame, a speed regulating mechanism, a
sealing temperature control system, a transmission and guarantee
delivery system, and a printing installation. When the
power is turned on, the electric heating elements generate heat, which
causes the upper and lower heating blocks to rise sharply. The
temperature controller and speed control are installed to adjust the
required temperature and speed. Between the two sealing tapes in the
middle, the plastic bag is automatically sealed by the heating strip.
Main technical parameters of horizontal film sealing machine:
Model
900 continuous sealing machine
Power
220V 50Hz
Power
500W
Sealing width
6-15mm
Temperature control range
0-300 ℃
Sealing speed / Sealing width
0-13m / min
Printing letters
<>
Conveyine size
<>
Machine size / Mahgine size
L900 × W480 × H380mm
Machine weight
36kg
Model: 900 Continuous Sealing Machine
Multifunctional film sealing machine is suitable for the sealing and
packaging of plastic bags. It adopts electronic temperature control and
stepless speed regulation transmission. It can seal plastic films of
various materials (PE, PP, aluminum film, etc.), and can also be
equipped with indentation. Printing device.
The machine is composed of a frame, a speed regulating mechanism, a
sealing temperature control system, a transmission and guarantee
delivery system, and a printing installation. When the
power is turned on, the electric heating elements generate heat, which
causes the upper and lower heating blocks to rise sharply. The
temperature controller and speed control are installed to adjust the
required temperature and speed. Between the two sealing tapes in the
middle, the plastic bag is automatically sealed by the heating strip.
Main technical parameters of horizontal film sealing machine:
